Vortex86DX2

The first-ever CPU will build-in Motion Control function.

Overview

Vortex86DX2 is a high performance and fully static 32-bit X86 processor with the compatibility of Windows based, Linux and most popular 32-bit RTOS.

Main Features

  • 32KB write through 4-way L1 cache
  • 256KB write through/write back 4-way L2 cache
  • PCIE bus in at 2.5 GHz
  • DDR2
  • ROM controller
  • ISA
  • I2C
  • SPL
  • IPC (Internal Peripheral Controllers with DMA and interrupt timer/counter included)
  • Fast Ethernet
  • FIFO UART
  • USB2.0 Host and IDE/SATA controller within a single 720-pin BGA package to form a system-on-a-chip (SOC)
It provides an ideal solution for the embedded system and communications products (such as thin client, NAT router, home gateway, access point and tablet PC) to bring about desired performance.

Features of Vortex86DX2

X86 Processor Core
  • 6-stage pipeline
Floating point unit support
  • Extends CPU instruction set to include Trigonometric, Logarithmic and Exponential
  • Implements ANSI/IEEE standard 754-1985 for binary Floating-Point Architecture
Embedded I / D Separated L1 Cache
  • 16K I-Cache
  • 16K D-Cache
Embedded L2 Cache
  • 4-way 256KB L2 Cache
  • Write through or write back policy
DDRII Control Interface
  • 32 bits data bus
  • DDRII clock support up to 400MHz
  • DDRII size support up to 2Gbytes
IDE Controller
  • PATA 100 (Disk x 2) or SD Card x2
SATA Controller
  • Supports 1 port serial ATA(1.5G)
ADC Interface x 8
GPU Control Unit
  • VGA controller
  • 2D Graphics engine support
  • UMA architecture
MAC Controller x 1
PCIE Control Interface x 2
  • Up to 2 sets PCIE device
  • 3.3V I / O
ISA Bus Interface
  • At clock programmable
  • 8/16 Bit ISA device with Zero-Wait-State
  • Generate refresh signals to ISA interface during DRAM refresh cycle
  • Support Max ISA Clock 33M
HDA Controller
DMA Controller
Interrupt Controller
MTBF Counter
Counter / Timers
  • 2 sets of 8254 timer controller
  • Timer output is 5V tolerance I/O on 2nd Timer
Real Time Clock
  • Less than 2uA (3.0V) power consumption in Internal RTC Mode while chip is power-off
FIFO UART Port x 9 (9 sets COM Port)
  • Compatible with 16C550 / 16C552
  • Default internal pull-up
  • Supports the programmable baud rate generator with the data rate from 50 to 6M bps
  • The character options are programmable for 1 start bits; 1, 1.5 or 2 stop bits; even, odd or no parity; 5~8 data bits
  • Support TXD_En Signal on COM1/2
  • Port 80h output data could be sent to COM1 by software programming
Parallel Port x 1
  • Supports SPP/EPP/ECP mode
General Programmable I/O
  • Supports 88 programmable I / O pins
  • Each GPIO pin can be individually configured to be an input/output pin
  • GPIO_P0~GPIO_P4 can be program by 8051A
  • GPIO_P0~GPIO_PA can be program by 8051B
  • GPIO_P0 and GPIO_P1 with interrupt support (input/output)
USB 2.0 Host Support
  • Supports HS, FS and LS
  • 4 port
USB 1.1 Device Support
  • Supports FS with 3 programmable endpoints
  • 1 port
PS / 2 Keyboard and Mouse Interface Support
  • Compatible with 8042 controller
Speaker out
Redundant System Support
Embedded 2MB Flash
  • For BIOS storage
I2C bus x 2
  • Compliant w/t V2.1
  • Some master code (general call, START and CBUS) not support
Motor Control Interface Support
  • 3 groups of controllers, 4 controllers per group
  • Each controller can configure to PWM/Servo/Sensor Interface mode
  • Controller interconnect to the other with routing network in the same group
  • 8051 Internal Motion Control Support
General Shift Interface Support
  • 3 channels
JTAG Interface supported for S.W. debugging
Input clock
  • 14.318 MHz
  • 32.768 KHz
Full Deplex SPI bus x 2
Output clock
  • 24 MHz
  • 25 MHz
  • PCI clock
  • DDRII clock
Operating Voltage Range
  • Core voltage: 1.0 V ± 5%
  • I / O voltage:1.2V± 5%, 1.8V ± 5% , 3.3 V ± 10 %
Operating temperature
  • TBD
Package Type
  • 31x31mm
  • 720 Ball BGA

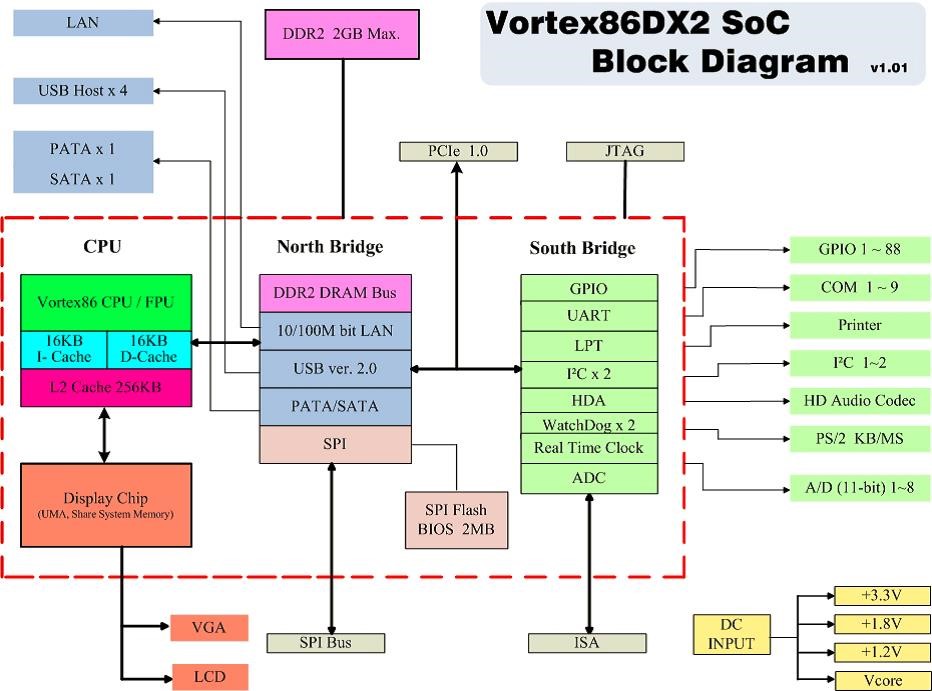

System Block Diagram

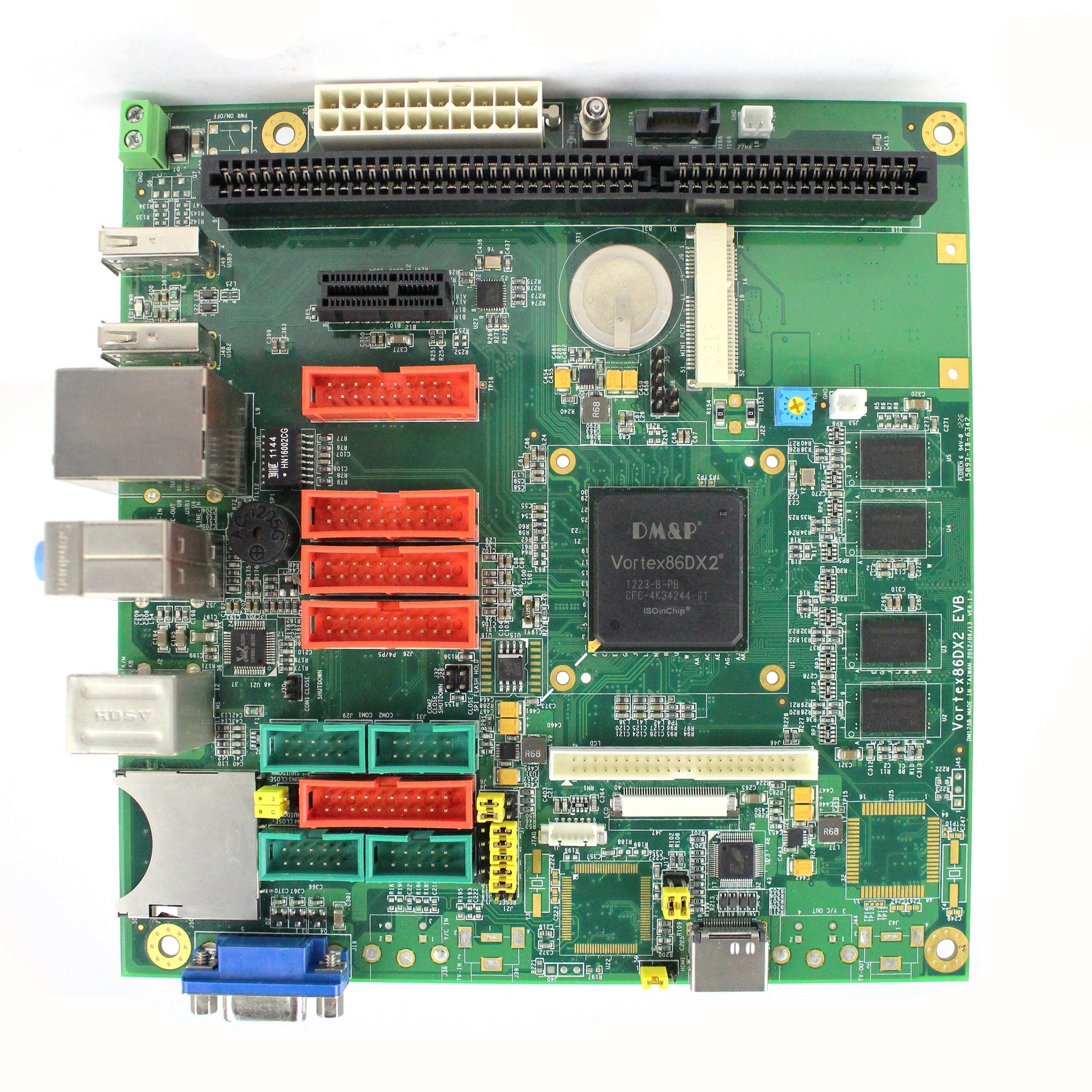

VDX2-6690

For detail reference design, schematic, gerber, layout, layout guide ....etc, please contact soc@dmp.com.tw to get the FTP access for all the reference design documents.

Vortex86DX2 support most of legacy OS and RTOS which provide standard x86 BSP. Please contact soc@dmp.com.tw if you can't download proper information or driver from our website.



Windows: CE 6.0, Embedded Compact 7

Linux : Up to kernel 4.14 with QT support, the Buildroot step by step guide is also available.

Other OS Support: For QNX, VxWorks and RTOS 32 support, please contactsoc@dmp.com.tw

Our Life Cycle Policy:

All of DMP Electronics product should have at least 10 years life cycle. For detailed information, please contact soc@dmp.com.tw.
