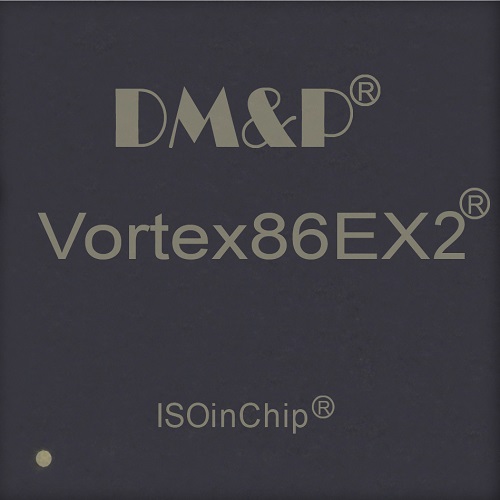

Vortex86EX2 |

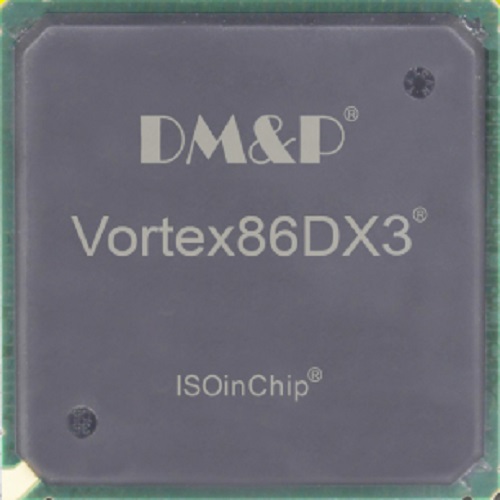

Vortex86DX3 |

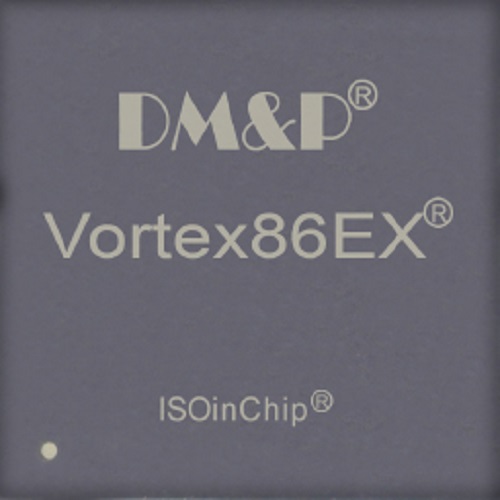

Vortex86EX |
Vortex86DX2 |

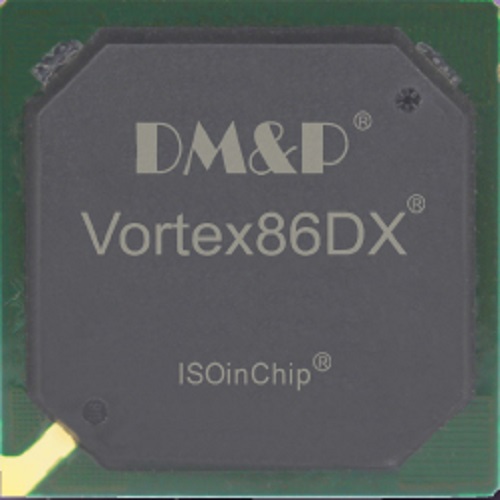

Vortex86DX |

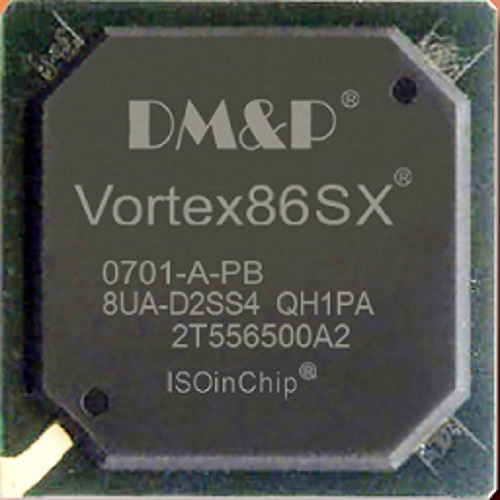

Vortex86SX |
|
|---|---|---|---|---|---|---|
| Frequency | 600 MHZ(typ.) | 1000 MHZ(typ.) | 400 MHZ(typ.) | 300 MHZ(typ.) | 300 MHZ(typ.) | 800 MHZ(typ.) |
| Core | Two (600+400 MHz) | Dual | Single | Single | Single | Single |
| Process | 65nm | 40nm | 90nm | 90nm | 90nm | 130nm |
| FPU | Yes | Yes | Yes | Yes | Yes | N/A |
| L1 Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache | 16KB C/D Cache |
| L2 Cache | 128KB | 256KB | 128KB | 256KB | 256KB | N/A |
| BIOS Flash | N/A | 8MB | N/A | 2MB | 2MB | 256KB |
| DRAM Bus |
16-bit DDR3
2GB Max. (2-bit ECC)
|
32-bit DDR3 2GB Max. | 16-bit DDR3 1GB Max. | 32-bit DDR2 2GB Max. | 16-bit DDR2 1GB Max. | -bit DDR2 512MB Max. |
| GPU |
N/A
(external PCIGraphoc chip,
Vortex86 VGA,is available)
|
2D Engine, CRT/LCD, UMA, Dual Display |
N/A | 2D Engine, CRT/LCD,UMA | N/A | N/A |
| HD-Audio | Yes | Yes | Yes | Yes | N/A | N/A |
| WatchDog | 2 | 2 | 1 | 2 | 2 | 2 |
| PCI Bus | PCI + PCIe x 2 | PCIe x 2 | PCIe x 1 | PCIe x 1 | Yes | Yes |
| ISA Bus | Yes | Yes | x-ISA | Yes | Yes | Yes |
| LPC Bus | N/A | N/A | N/A | N/A | Yes | Yes |
| USB | USB 2.0 Host x 2 | USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 2 USB 1.1 Client x 1 |
USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 4 USB 1.1 Client x 1 |
USB 2.0 Host x 4 |
| Serial Port | 10 max. | 9 max. | 10 max. | 9 max. | 5 max. | 5 max. |
| GPIO Port | 128 bit max. | 88 bit max. | 80 bit max. | 88 bit max. | 40 bit max. | 40 bit max. |
| Ethernet (10/100Mbps) | 2 | 1 | 1 | 1 | 1 | 1 |
| SD/MMC | 3 | 2 | 2 | 2 | 2 | N/A |
| SATA/IDE | N/A | IDE + SATA | SATA | IDE + SATA | IDE | IDE |
| Parellel Port | 1 | 1 | 1 | 1 | 1 | 1 |
| CAN | 2 | 0 | 1 | 0 | 0 | N/A |
| I2C | 2 | 2 | 1 | 2 | 2 | 2 |
| SPI | 2 | 2 | 1 | 2 | 1 | 1 |
| ADC | 12 bit x 16 chan. | 11 bit x 8 chan. | 11 bit x 8 chan. | N/A | N/A | N/A |
| Package Size | 19 x19 mm | 31 x 31 mm | 16 x 16 mm | 31 x 31 mm | 27 x 27 mm | 27 x 27 mm |
| Ambient Temp | -40 ~ +850C | -40 ~ +850C | -40 ~ +850C | -40 ~ +850C | -40 ~ +850C | -40 ~ +850C |
