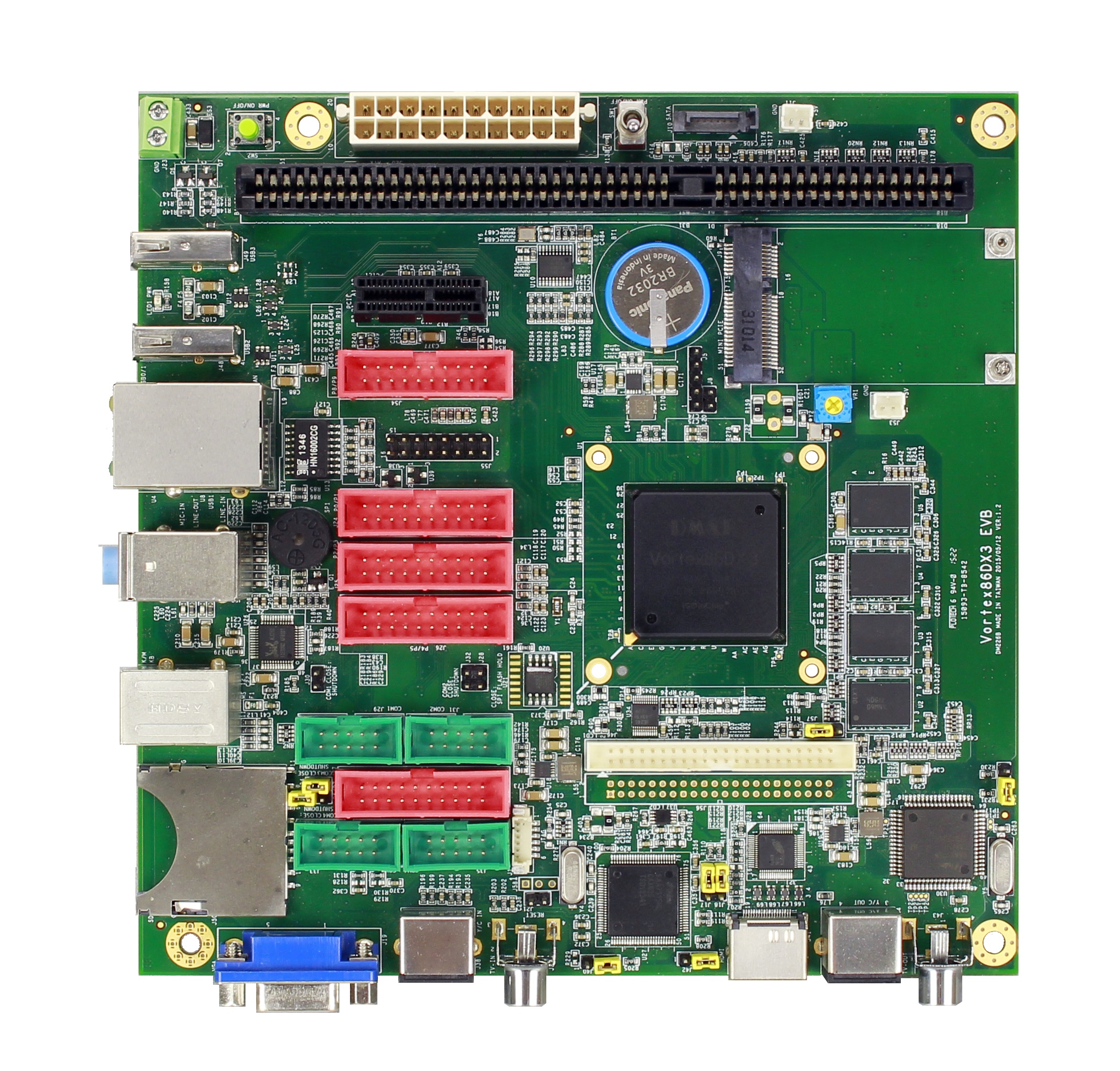

The 1GHz dual Core CPU with selectable I/O.

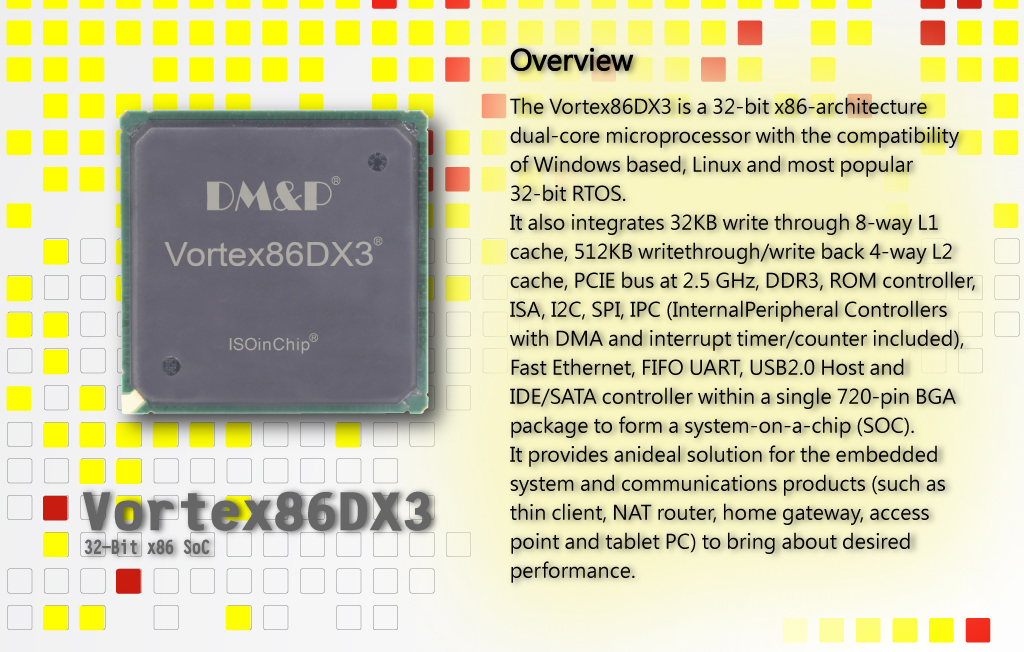

Vortex86DX3 is a 32-bit x86-architecture dual-core microprocessor with the compatibility of Windows based, Linux and most popular 32-bit RTOS.

Main Features

  • 32KB write through 8-way L1 cache
  • 512KB writethrough/write back 4-way L2 cache
  • PCIE bus at 2.5 GHz
  • DDR3
  • ROM controller
  • ISA
  • I2C
  • SPI
  • IPC (Internal Peripheral Controllers with DMA and interrupt timer/counter included)
  • Fast Ethernet
  • USB2.0 Host
  • IDE/SATA controller within a single 720-pin BGA package to form a system-on-a-chip (SOC)
It provides an ideal solution for the embedded system and communications products (such as thin client, NAT router, home gateway, access point and tablet PC) to bring about desired performance.

Features of Vortex86DX3

x86 Processor Dual Core
  • Symmetric Multi-Processors
  • 6 stage pipeline
  • X86 instruction set
Floating point unit support
  • Extends CPU instruction set to include Trigonometric, Logarithmic and Exponential
  • Implements ANSI/IEEE standard 754-1985 for binary Floating-Point Architecture
Embedded I / D Separated L1 Cache
  • 8-way 32K I-Cache
  • 8-way 32K D-Cache
Embedded Unified L2 Cache
  • 4-way 512KB L2 Cache
  • Write through or write back policy
System DDR3 Control Interface
  • 32-bit data bus
  • DDR3 size support up to 2Gbytes
GPU Control Unit
  • UMA architecture
  • VGA controller
  • 2D Graphics engine support
  • Max display resolution 1920×1440@60Hz with 234MHz video clock
  • Dual Display support: only one display can be 1920×1200, 1 DVO (24bits) & 1 D-SUB or 2 DVO (12bit x 2)
  • Support H.264 1080P video decode
Temperature sensor
MAC Controller x 1
Embedded 2MB Flash
  • For BIOS storage
JTAG Interface supported for S.W. debugging
IDE Controller
PATA 100(HDD x 2) or SD x 2 at Primary Channel
SATA 1.5Gb/s (1 Port) at Secondary Channel
PCIE Control Interface x 2
  • Up to 2 sets PCIE device
  • 3.3V I / O
USB 2.0 Host Support
  • Supports HS, FS and LS
  • 4 port
HDA Controller
ISA Bus Interface
  • AT clock programmable
  • 8/16 Bit ISA device with Zero-Wait-State
DMA Controller
8259 Interrupt Controller
Counter / Timers
  • 2 sets of 8254 timer controller
  • Timer output is 5V tolerance I/O on 2nd Timer
Real Time Clock
  • Less than 2.5uA (3.0V) power consumption in Internal RTC Mode while chip is power-off.
FIFO UART Port x 9 (9 sets COM Port )
Parallel Port x 1
General Programmable I/O
I2C bus x 2
MTBF Counter
ADC Interface x 8
General Shift Interface Support
Full Duplex SPI bus x 2
Input clock
  • 25 MHz
  • 14.318MHz
Output clock
  • DDR3 clock
DDR3 clock
  • Core voltage: 0.9V± 5%
  • I / O voltage: 1.2V ± 5%, 1.5V ± 5%, 1.8V ± 5%, 3.3 V ± 10 %
Operating Temperature
  • -40℃ ~ 85℃
Package Type
  • 31x31mm
  • 720 Ball PBGA

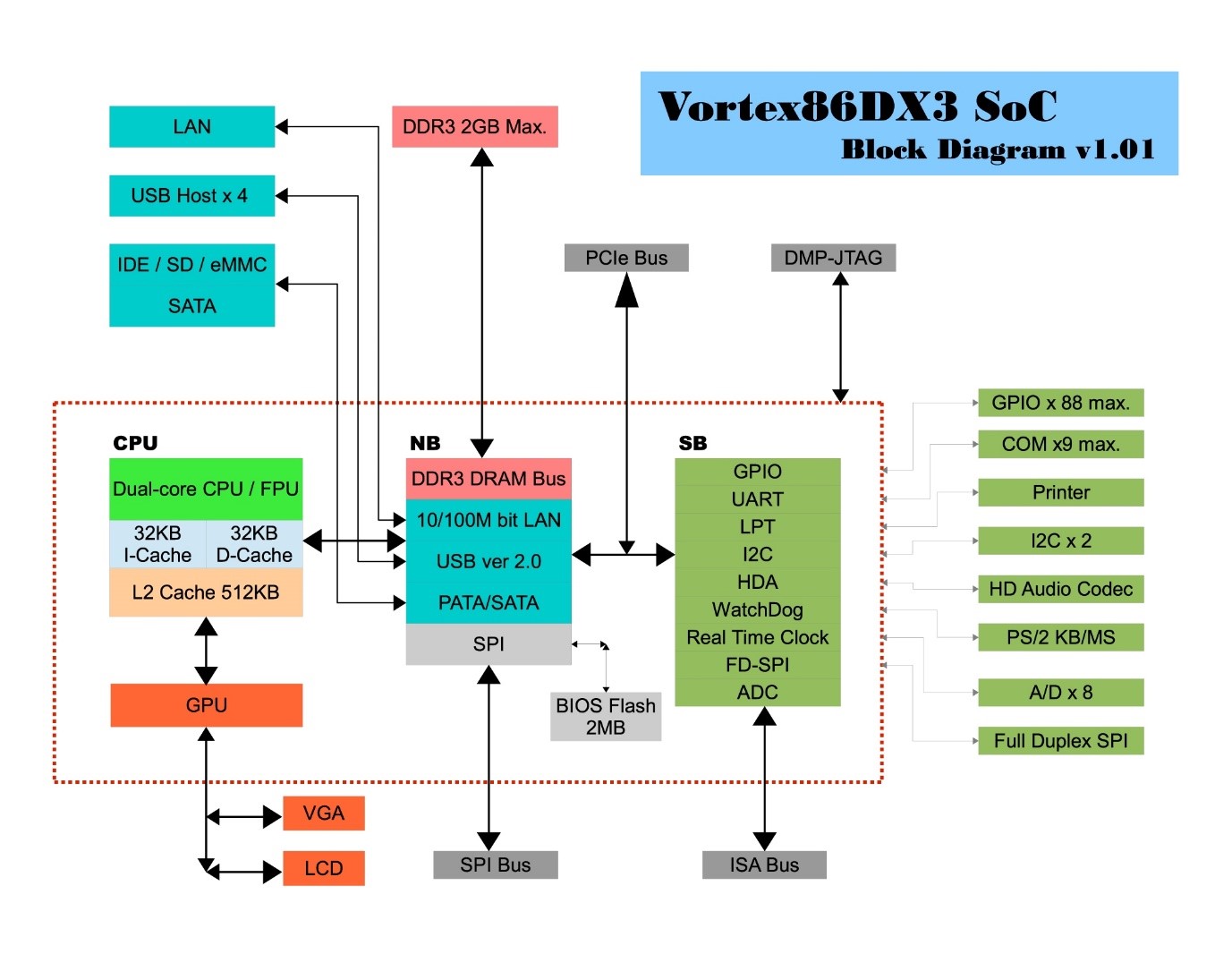

System Block Diagram


For detail reference design, schematic, gerber, layout, layout guide ....etc, please contact soc@dmp.com.tw to get the FTP access for all the reference design documents.

Vortex86DX3 support most of legacy OS and RTOS which provide standard x86 BSP. Please contact soc@dmp.com.tw if you can't download proper information or driver from our website.


Windows: CE 6.0, Embedded Compact 7

Linux : Up to kernel 4.14 with QT support, the Buildroot step by step guide is also available.

Other OS Support: For QNX, VxWorks and RTOS 32 support, please contactsoc@dmp.com.tw

Our Life Cycle Policy:

All of DMP Electronics product should have at least 10 years life cycle. For detailed information, please contact soc@dmp.com.tw.
